Adjacent-cell transfer

Inductor Balancer Board

The lightest way to stop cell drift

Matrix-transformer boards that move energy between adjacent cells. At 4–60 grams they fit packs where a smart balancer would be overkill, and they still run entirely on the pack’s internal energy.

Mechanism: Adjacent-cell inductive transfer: starts above 0.1V neighbour delta, stops below 0.03V.

15 models in this line

2 A

NEEY DG-2S 2A Inductive Balancer

DG-2S 2A · 2S

Adjacent-cell inductive balancing for 2S packs. 4 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$41.92 Details →

2 A

NEEY DG-3S 2A Inductive Balancer

DG-3S 2A · 3S

Adjacent-cell inductive balancing for 3S packs. 7 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$42.38 Details →

2 A

NEEY DG-4S 2A Inductive Balancer

DG-4S 2A · 4S

Adjacent-cell inductive balancing for 4S packs. 10 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$43.00 Details →

2 A

NEEY DG-5S 2A Inductive Balancer

DG-5S 2A · 5S

Adjacent-cell inductive balancing for 5S packs. 12 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$43.15 Details →

2 A

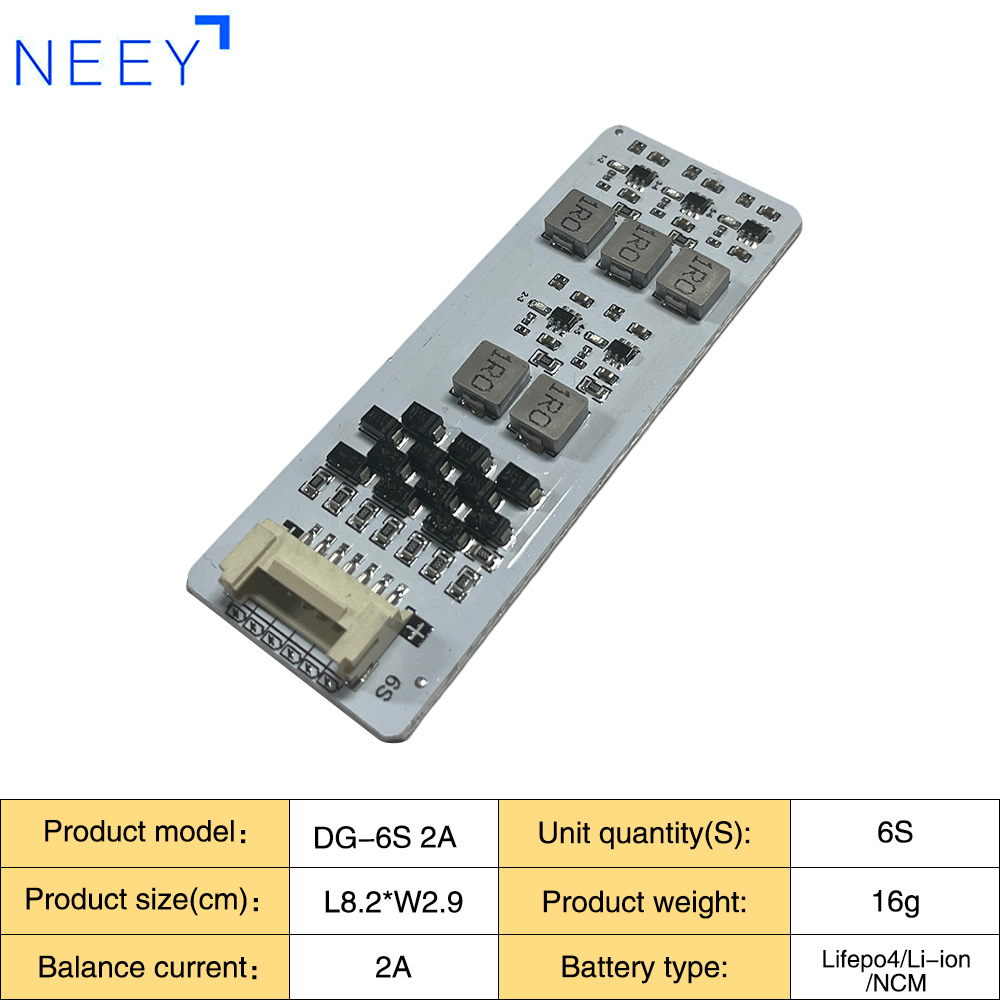

NEEY DG-6S 2A Inductive Balancer

DG-6S 2A · 6S

Adjacent-cell inductive balancing for 6S packs. 16 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$43.77 Details →

2 A

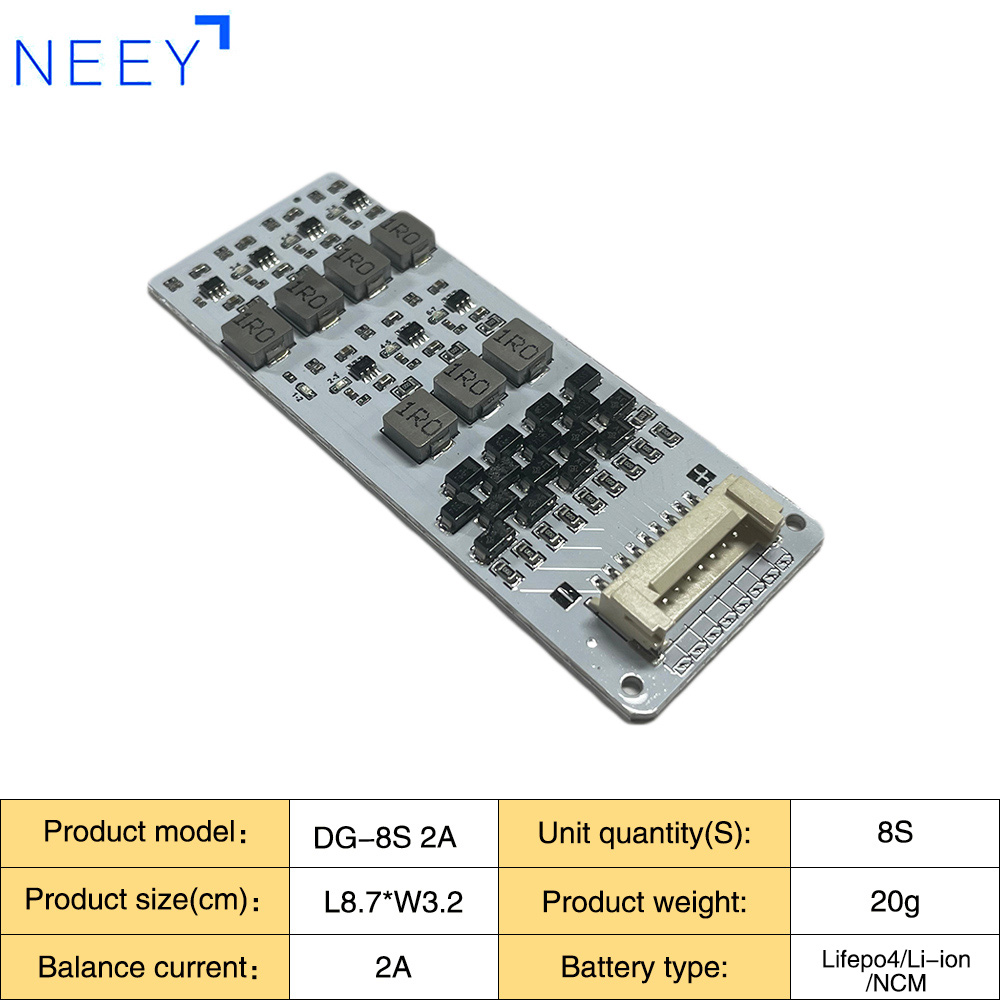

NEEY DG-8S 2A Inductive Balancer

DG-8S 2A · 8S

Adjacent-cell inductive balancing for 8S packs. 20 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$44.85 Details →

2 A

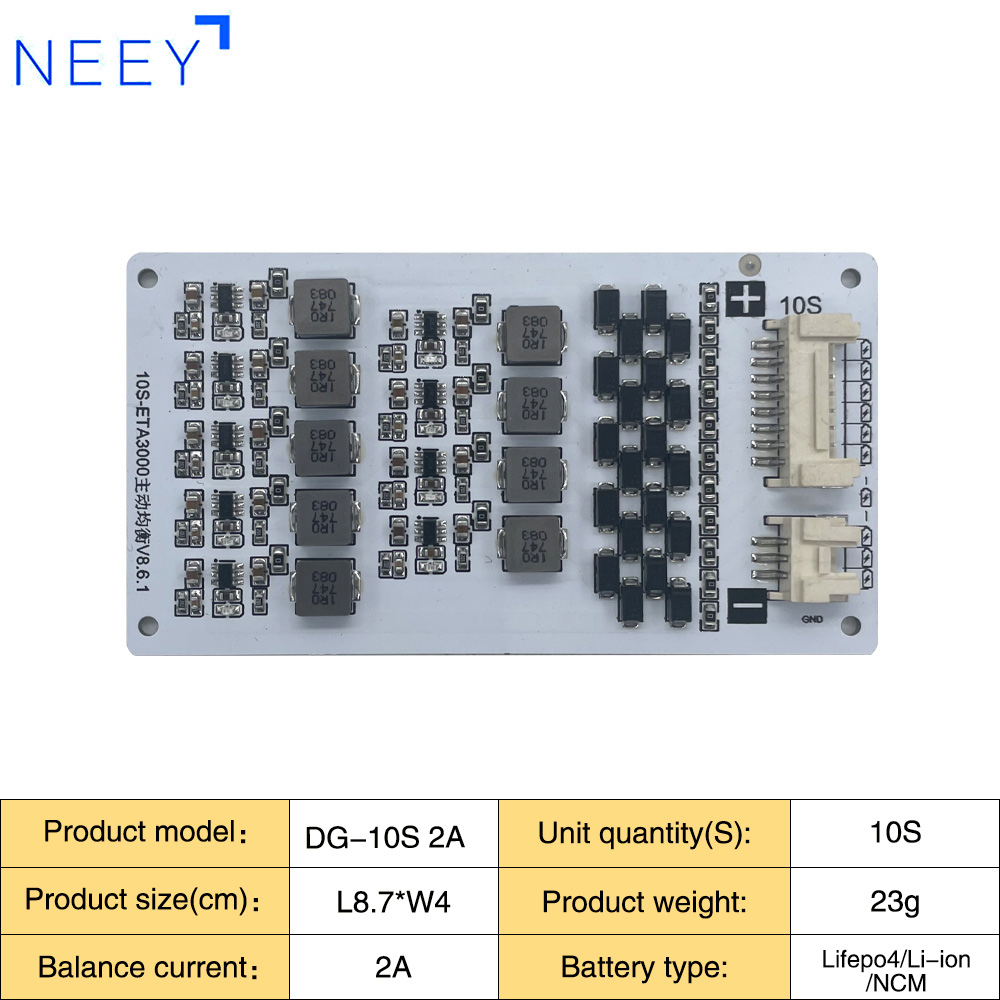

NEEY DG-10S 2A Inductive Balancer

DG-10S 2A · 10S

Adjacent-cell inductive balancing for 10S packs. 23 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$46.38 Details →

2 A

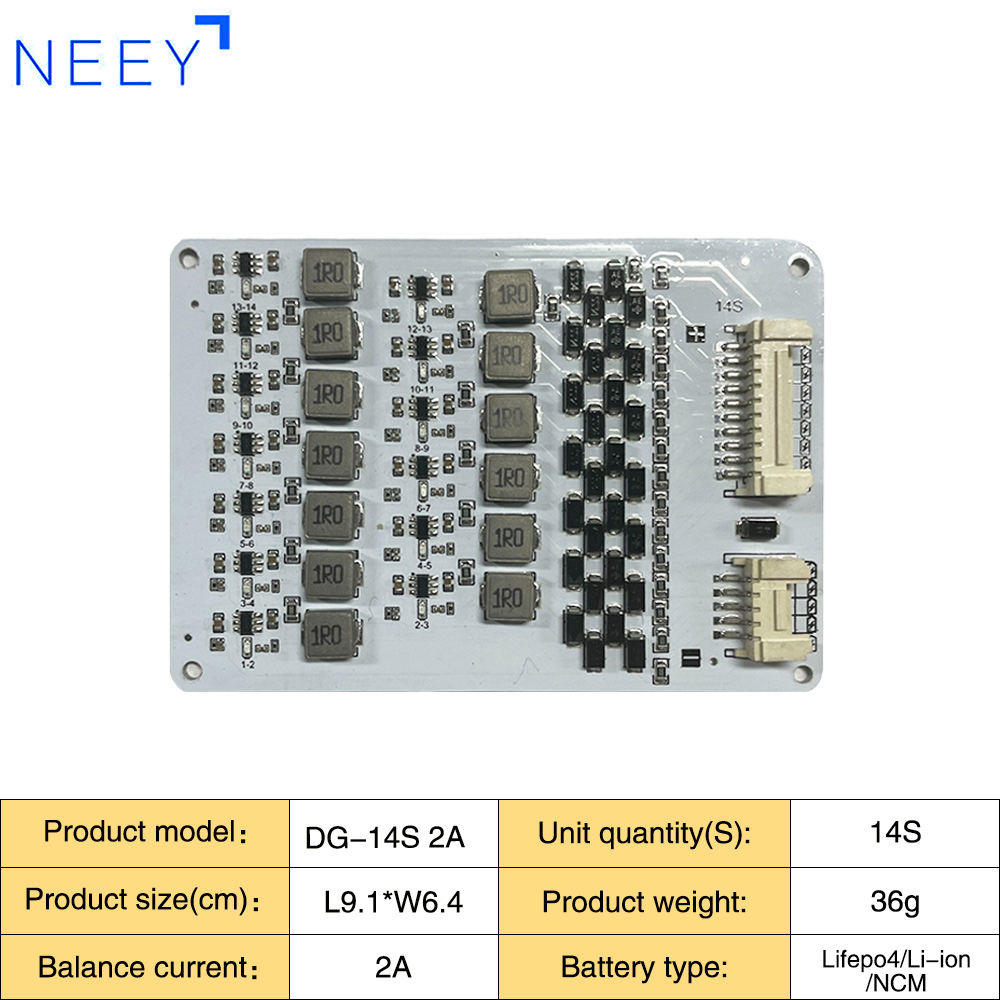

NEEY DG-14S 2A Inductive Balancer

DG-14S 2A · 14S

Adjacent-cell inductive balancing for 14S packs. 36 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$47.92 Details →

2 A

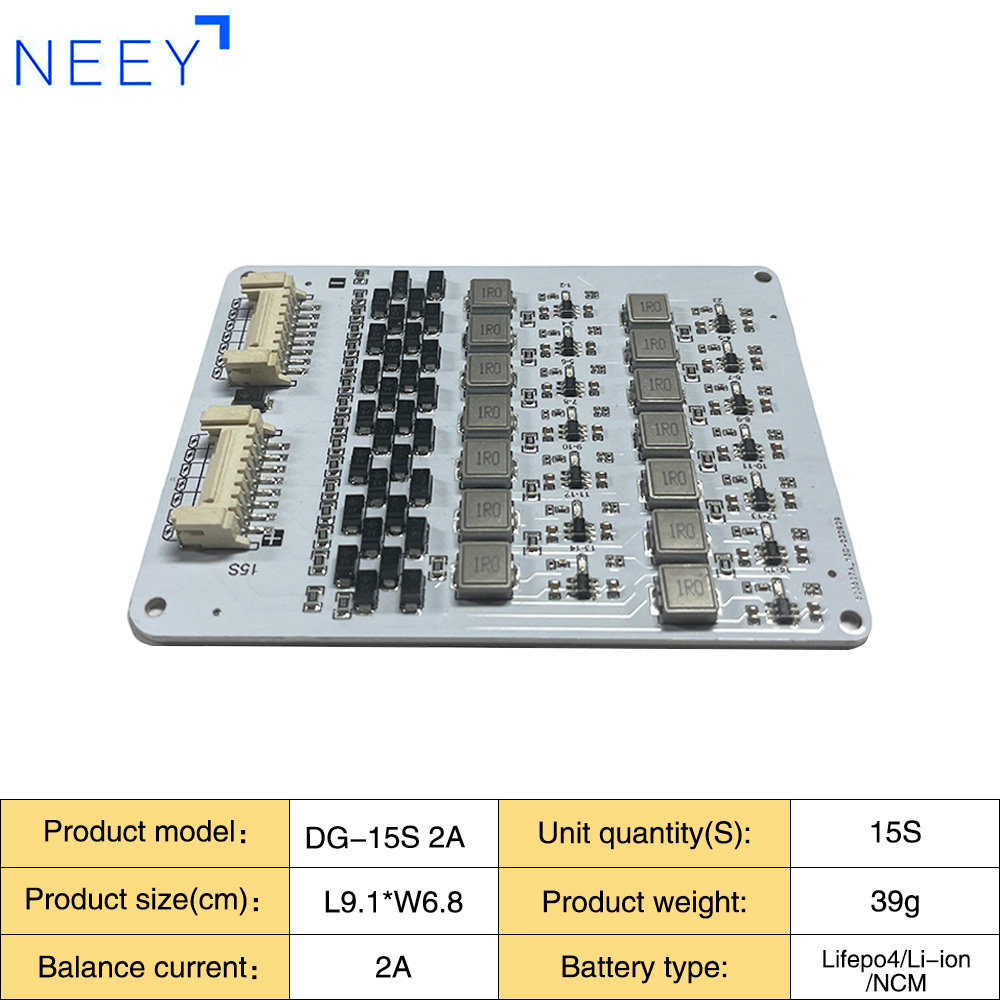

NEEY DG-15S 2A Inductive Balancer

DG-15S 2A · 15S

Adjacent-cell inductive balancing for 15S packs. 39 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$48.69 Details →

2 A

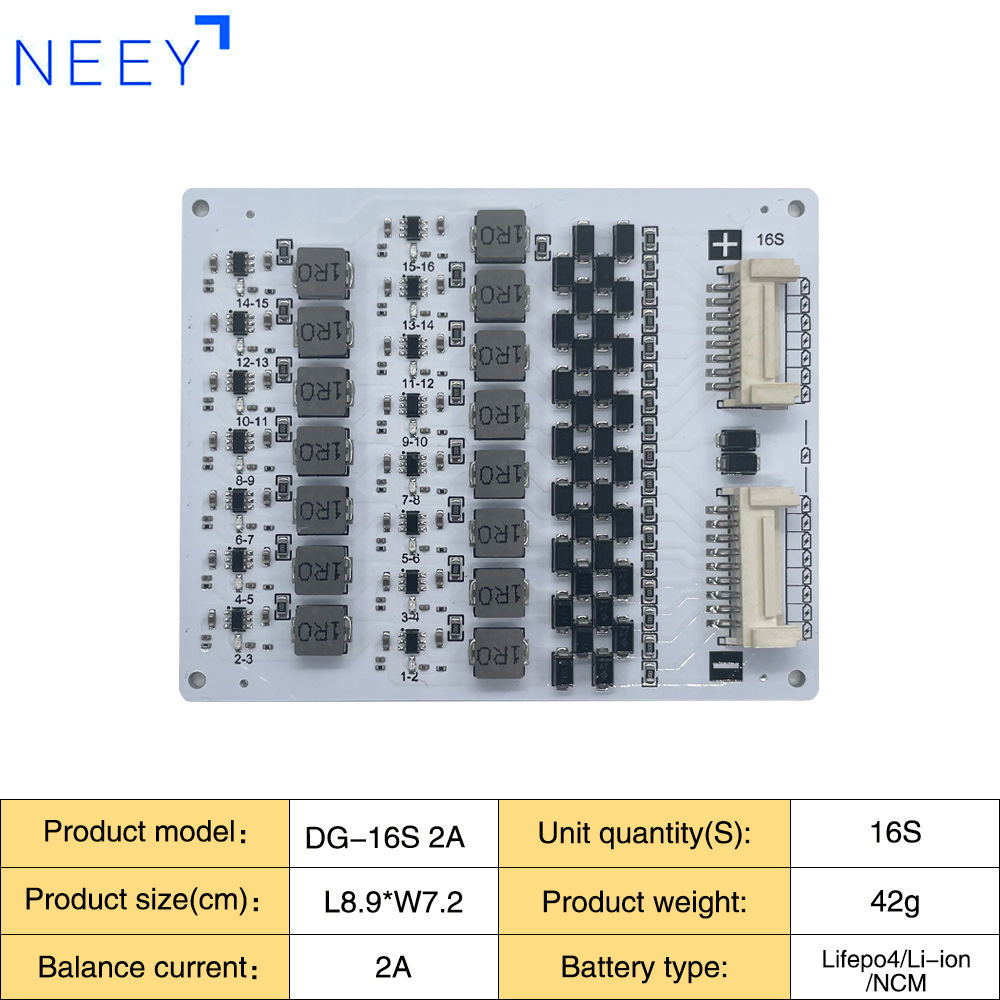

NEEY DG-16S 2A Inductive Balancer

DG-16S 2A · 16S

Adjacent-cell inductive balancing for 16S packs. 42 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$49.00 Details →

2 A

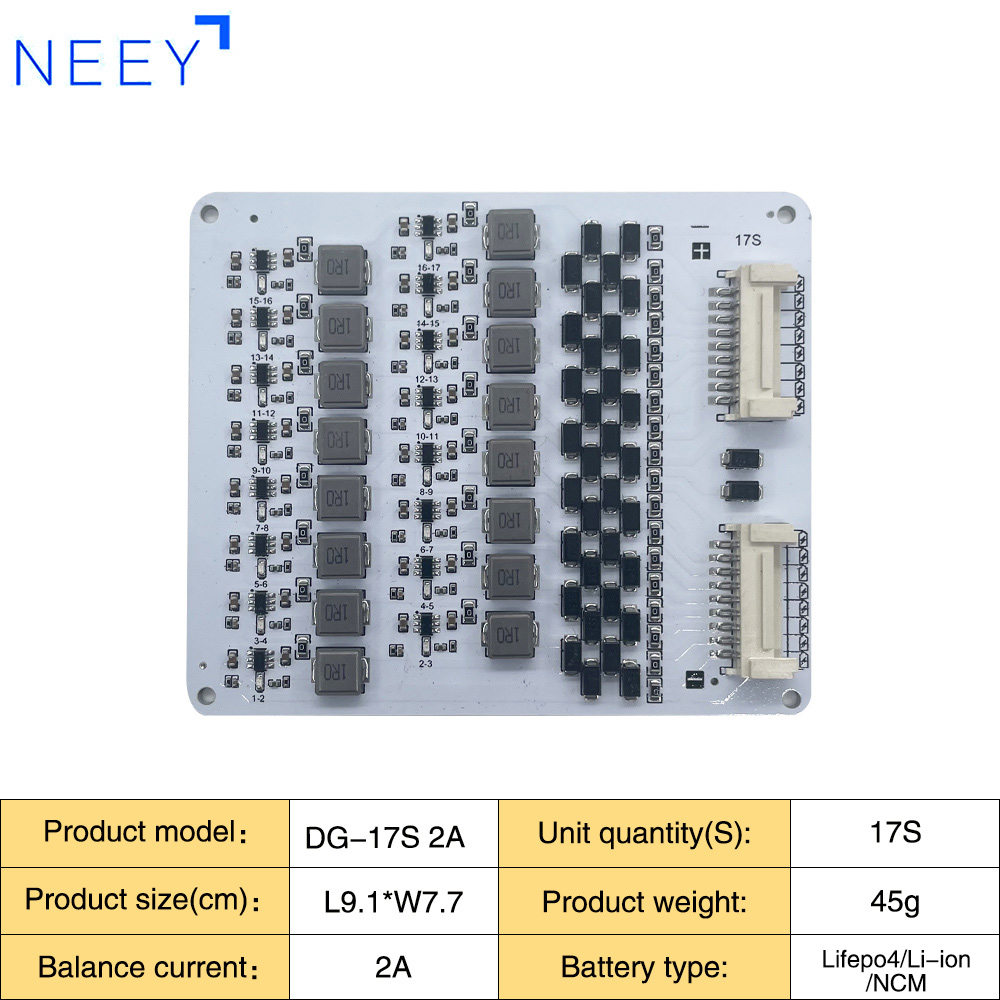

NEEY DG-17S 2A Inductive Balancer

DG-17S 2A · 17S

Adjacent-cell inductive balancing for 17S packs. 45 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$49.15 Details →

2 A

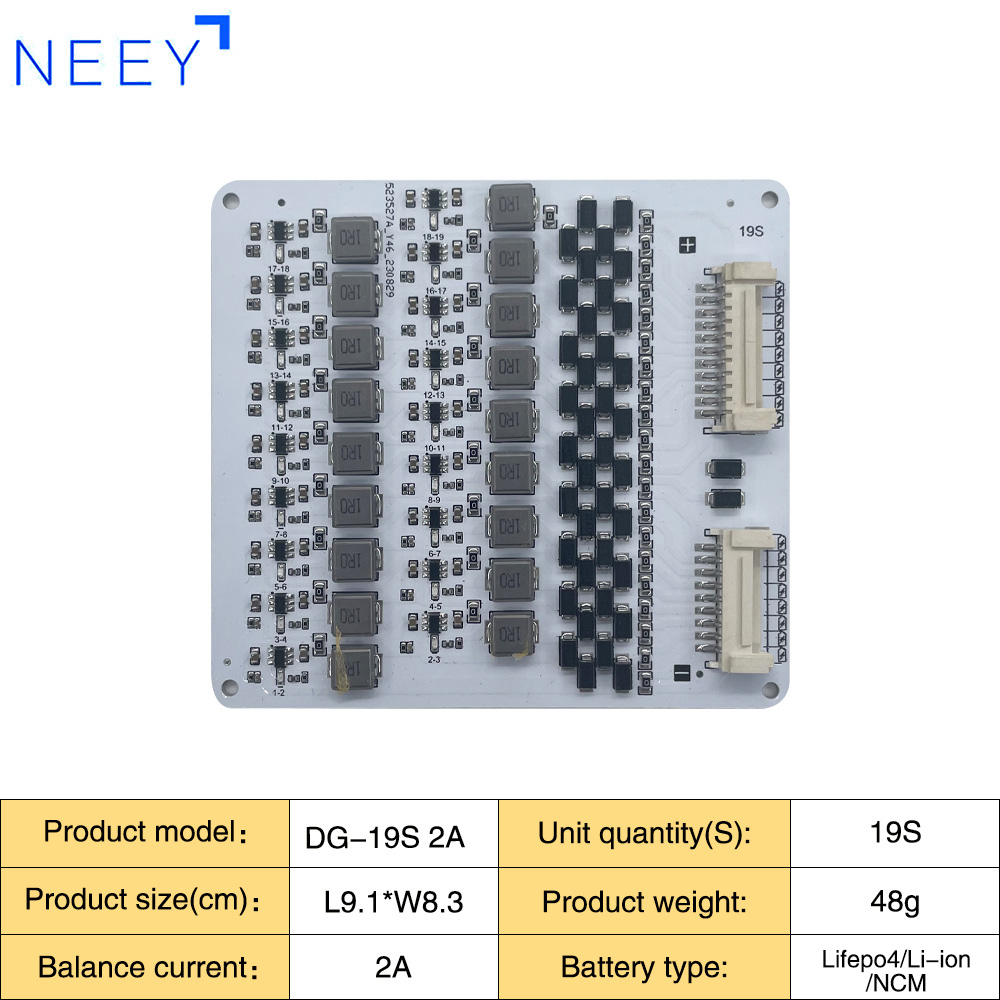

NEEY DG-19S 2A Inductive Balancer

DG-19S 2A · 19S

Adjacent-cell inductive balancing for 19S packs. 48 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$50.23 Details →

2 A

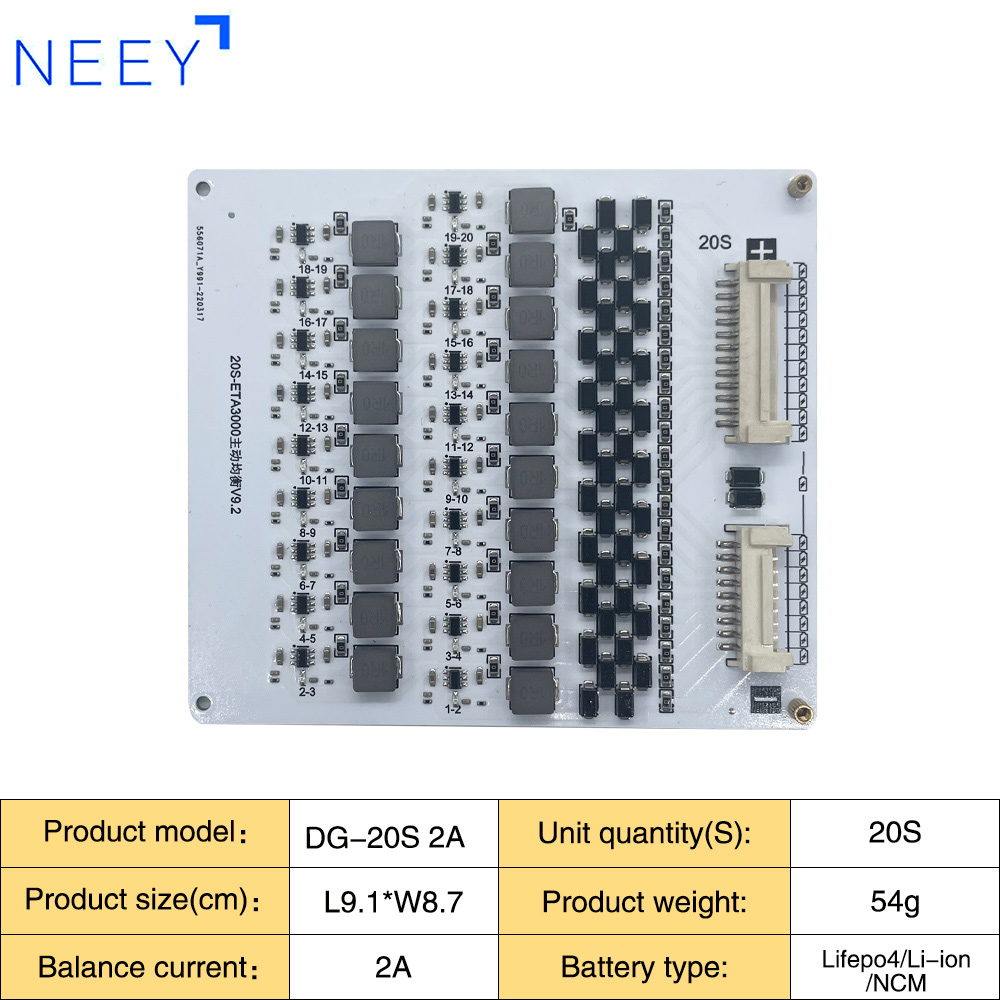

NEEY DG-20S 2A Inductive Balancer

DG-20S 2A · 20S

Adjacent-cell inductive balancing for 20S packs. 54 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$50.54 Details →

2 A

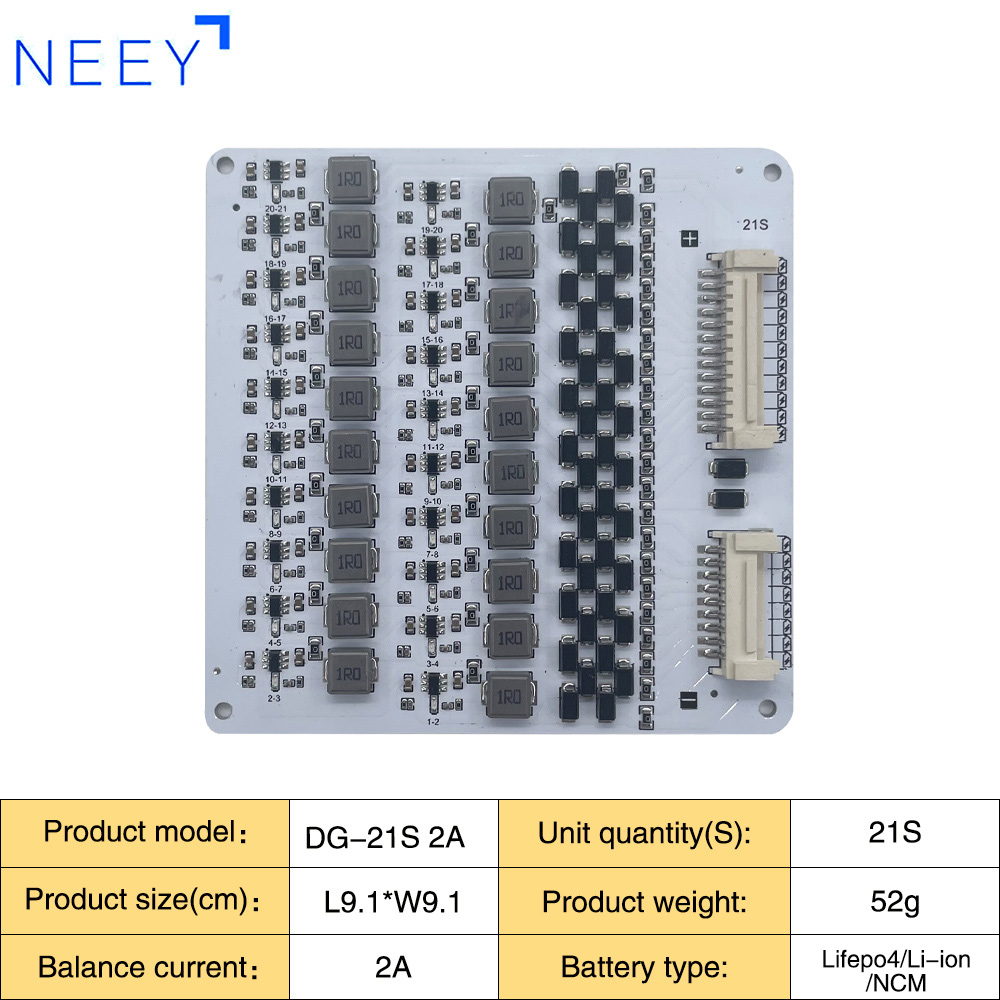

NEEY DG-21S 2A Inductive Balancer

DG-21S 2A · 21S

Adjacent-cell inductive balancing for 21S packs. 52 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$51.00 Details →

2 A

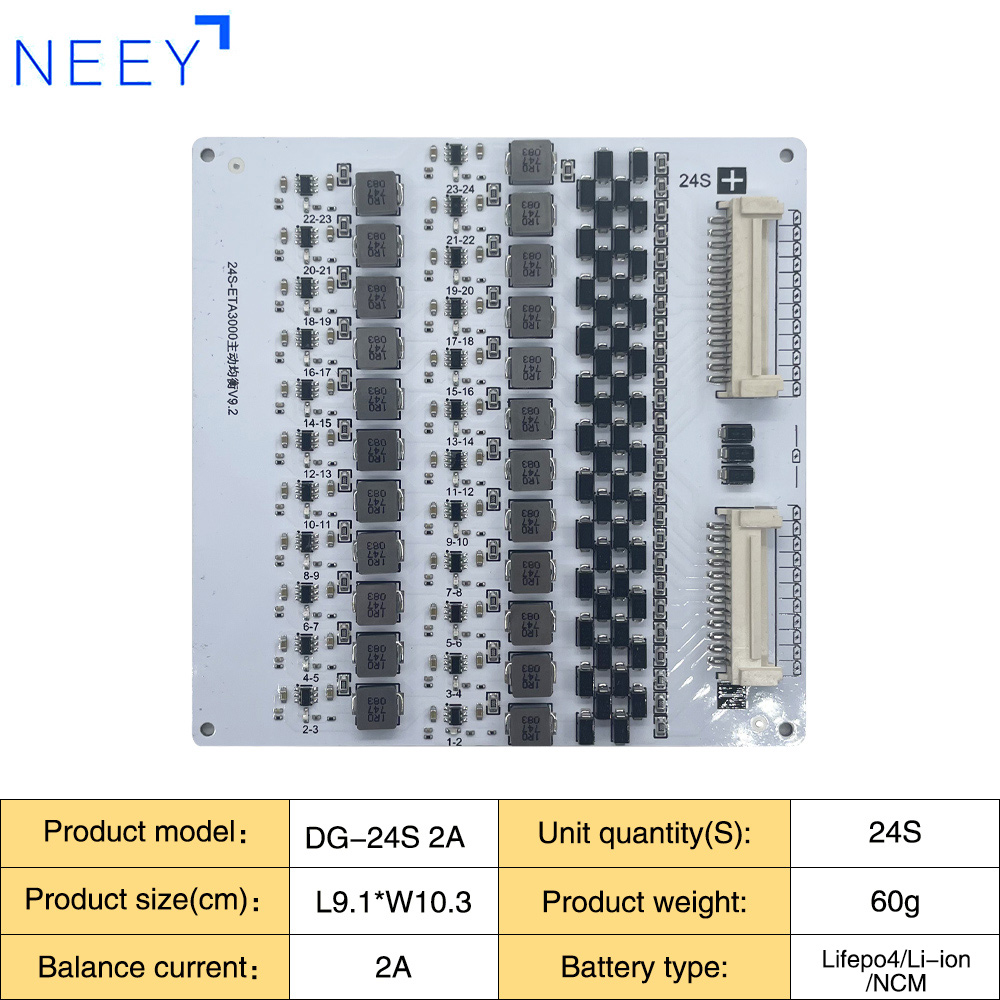

NEEY DG-24S 2A Inductive Balancer

DG-24S 2A · 24S

Adjacent-cell inductive balancing for 24S packs. 60 g, ten microamps at rest, and no external supply — the cheapest way to keep a pack from drifting.

$53.31 Details →

Compare within the line

Specification	DG-2S 2A 2S	DG-3S 2A 3S	DG-4S 2A 4S	DG-5S 2A 5S	DG-6S 2A 6S	DG-8S 2A 8S	DG-10S 2A 10S	DG-14S 2A 14S	DG-15S 2A 15S	DG-16S 2A 16S	DG-17S 2A 17S	DG-19S 2A 19S	DG-20S 2A 20S	DG-21S 2A 21S	DG-24S 2A 24S
Cell count	2S	3S	4S	5S	6S	8S	10S	14S	15S	16S	17S	19S	20S	21S	24S
Dimensions	L48 × W15 mm	L48 × W20 mm	L50 × W32 mm	L82 × W24 mm	L82 × W29 mm	L87 × W32 mm	L87 × W40 mm	L91 × W64 mm	L91 × W68 mm	L89 × W72 mm	L91 × W77 mm	L91 × W83 mm	L91 × W87 mm	L91 × W91 mm	L91 × W103 mm
Weight	4 g	7 g	10 g	12 g	16 g	20 g	23 g	36 g	39 g	42 g	45 g	48 g	54 g	52 g	60 g
Start / stop threshold	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V	Starts above 0.1 V neighbour delta · stops below 0.03 V
