NEEY EV600 DC Contactor
EV600
Our highest-current contactor: 600 A switching at 12–1000 Vdc, ceramic arc-extinguishing chamber, and 2500 A overload disconnection.
Price on request
Volume and sample pricing on request
Ordering: Ordering code: EV600 · A/F (aux contact) · 01 (NC aux). Coil voltage, lead length, lead-end connection and installation can be customised.
- 600 A @ 85 °C long-term current carrying capacity
- Rated 12 – 1000 Vdc, 600 A contact switching capability
- Maximum 2500 A overload current disconnection capacity
- Ceramic arc-extinguishing chamber with epoxy resin seal
- Built-in coil economizer

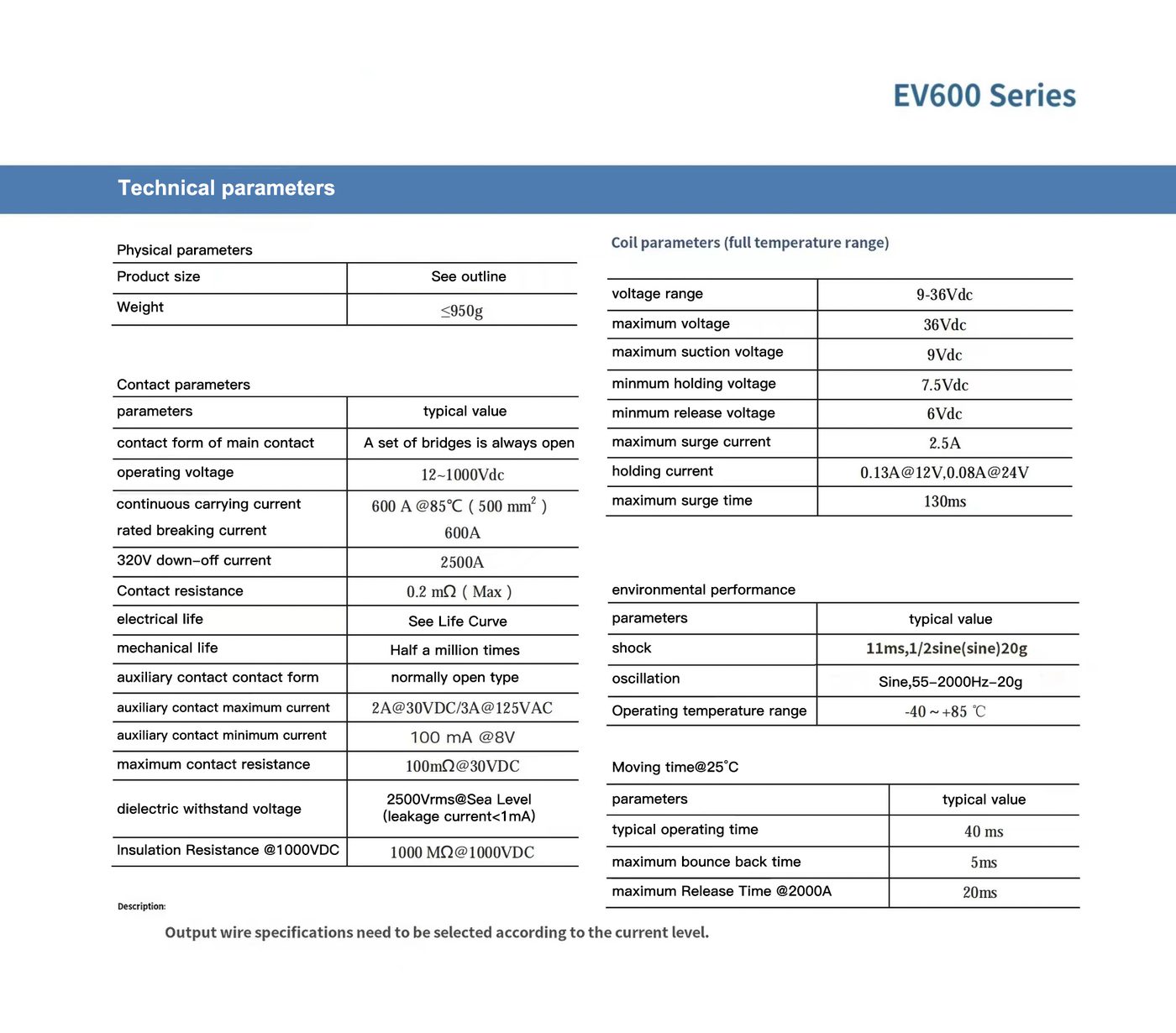

EV600 specifications
| Model | EV600 |
|---|---|
| Rated voltage | 12 V – 1000 Vdc |
| Contact switching current | 600 A |
| Long-term carrying capacity | 600 A @ 85 °C |
| Maximum overload disconnection | 2500 A |
| Rated break capability | 450 Vdc, 600 A |
| Arc control | Ceramic arc-extinguishing chamber; contacts will not oxidise or contaminate |
| Sealing | Epoxy resin |
| Coil | Built-in economizer · 9 V – 36 Vdc |
| Auxiliary contact | A = none · F = with aux · 01 = NC, blank = NO |
| Warranty | 1 year |
Included in the box
- · EV600 balancing board
- · Cell sampling leads / wiring set
- · Mounting hardware (Ø3.2 mm)
Need a different connector, lead length or silkscreen? Custom configurations are standard — send us your pack details.
Shipping & warranty
- · Free worldwide shipping — the price shown is delivered, carrier chosen for your address
- · 1-year warranty on all boards
- · EU, US and Brazil overseas warehouses for distributor orders
- · Air, sea and express routes available; CE / FCC / RoHS documents supplied with shipment
- · OEM and ODM: custom cell counts, branding and firmware configuration
